Product Center
Four product series to meet diverse industrial transmission needs
Machining
High-Precision CNC Machining Services
Specifications
- •Machining Accuracy: ±0.01mm
- •Max. machining size: 1500×800×600mm
- •CNC Equipment: 50+ units
- •Material range: steel, stainless steel, aluminum alloy, copper alloy, etc.
Use Cases
Gear
Precision Gear Manufacturing
Specifications
- •Modulus range: 0.5-20mm
- •Grade: DIN5-8
- •Maximum Diameter: 800mm
- •Gear Types: Spur gears, helical gears, bevel gears, worm gears, etc.
Use Cases
Coupling
Custom coupling solutions
Specifications
- •Types:梅花联轴器, membrane couplings, elastic couplings, etc.
- •Torque range: 10-50000 N·m
- •Speed: Up to 20000 RPM
- •Supports custom specifications
Use Cases

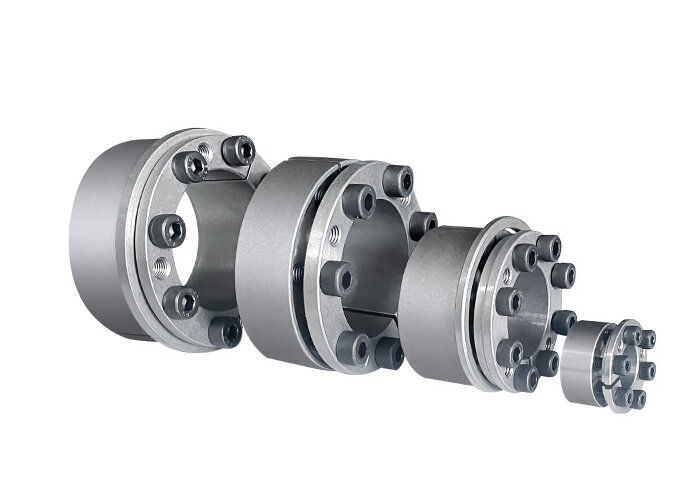

Tension Sleeve
High-Tension Taper Lock Bushing
Specifications
- •Inner diameter range: 10-500 mm
- •Torque range: 100-100000 N·m
- •Material: 45# steel, 4 0Cr, stainless steel, etc.
- •Surface finish: blackening, zinc plating, nickel plating, etc.
Use Cases
Product Image
Real-world production showcase: see our manufacturing strength in action

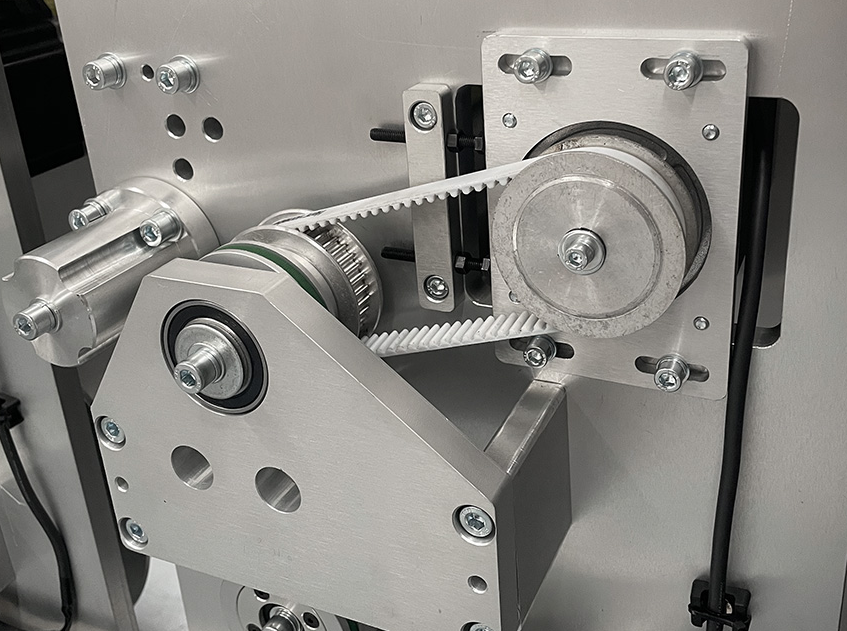

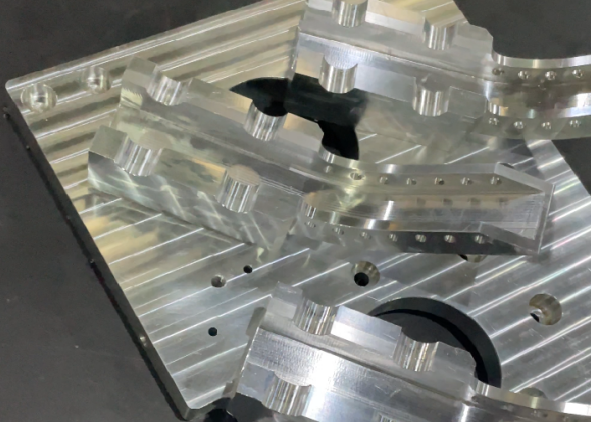

Precision Machined Parts for Automated Equipment
Automated high-precision aluminum components customized for new energy vehicle manufacturers, crafted from 7075 alloy and precision CNC-machined. Engineered with exceptional dimensional accuracy and structural stability to withstand demanding automation environments.
Achieves precision industrial-grade accuracy with transmission and operational efficiency up to 98%. Already mass-supplied across multiple models of automation equipment, with over 10 units delivered.

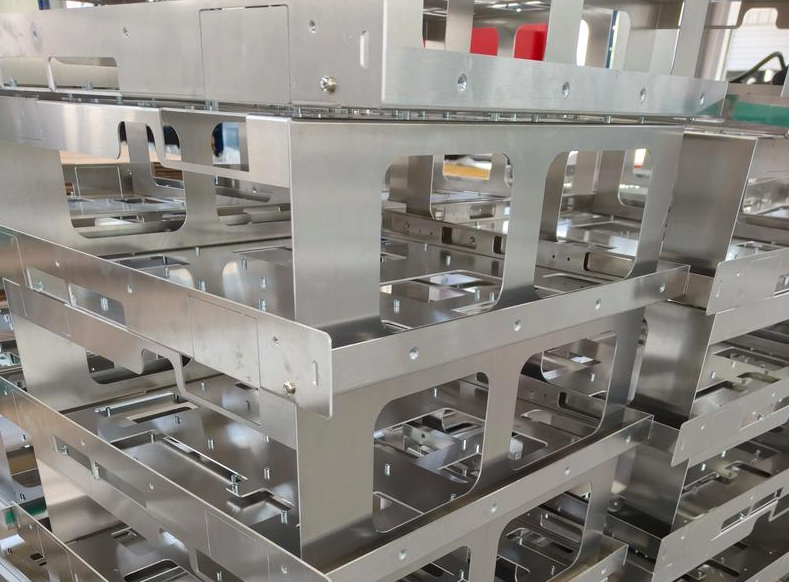

Precision sheet metal components for automated equipment
Precision sheet metal components designed for industrial automation enterprises, crafted from 7075 aluminum alloy. Features complex structural designs with multiple facets, irregular cutouts, and specialized forming configurations.
The CNC flexible sheet metal production line completes bending, punching, and cutting in a single setup. Machining dimensions are controlled within ±0.01mm, with surface roughness reaching Ra0.8. All finished products undergo precision coordinate measuring machine (CMM) inspection by the client, achieving a pass rate of 100%.

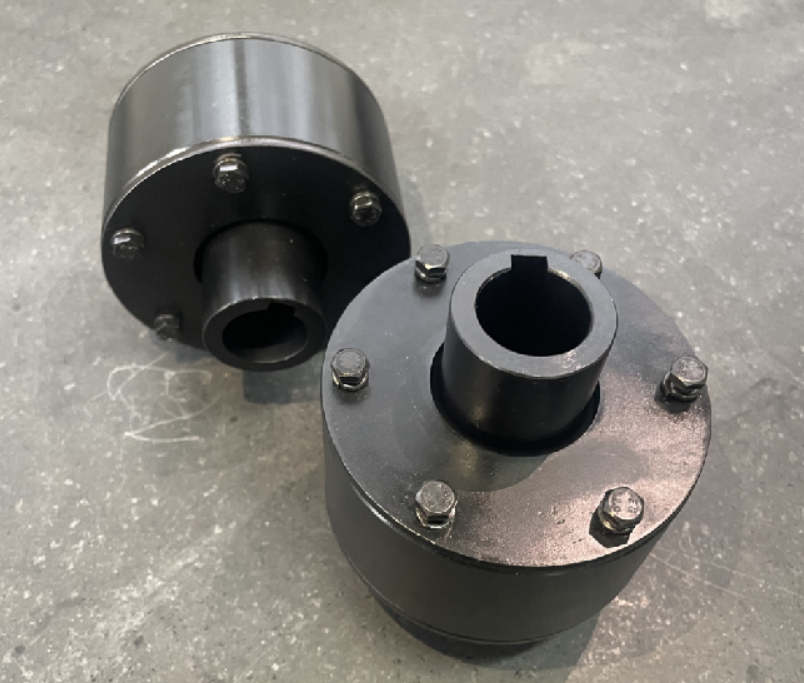

Elastic Pin Coupling for Large Wind Turbines
High and medium torque elastic pin couplings customized for large-scale general machinery manufacturers. Maximum torque: 8000 N·m; maximum speed: 1500 rpm.
Features a nylon elastic pin combined with cast iron or cast steel body, capable of compensating for minor axial, radial, and angular misalignments. Requires no lubrication, offers easy installation and removal, and ensures low maintenance costs. The product has passed 1000 hours of continuous operation testing, delivering stable shock absorption and reliable wear resistance. Ideal for medium-to-low load transmission applications.

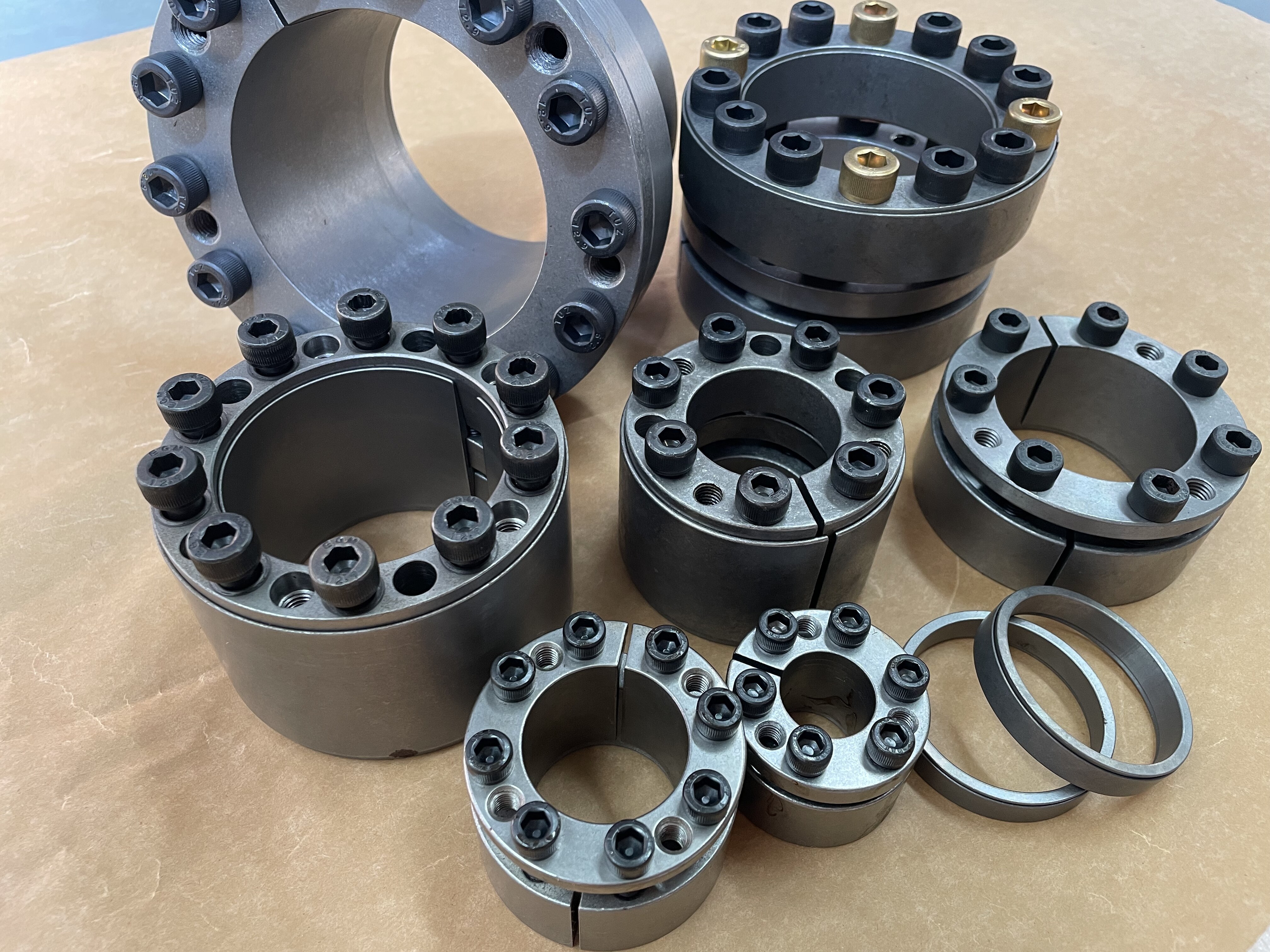

Motor-specific tensioning sleeve
Non-keyed taper bushings for motor manufacturers, with bore sizes 80-20 mm and torque ratings of 5000-2000 N·m.
Constructed from 4 0Cr material, it undergoes quenching and tempering followed by black oxide treatment. Features high precision, high rigidity, and zero backlash. Easy to install and designed for repeated assembly and disassembly, significantly reducing customer maintenance costs.

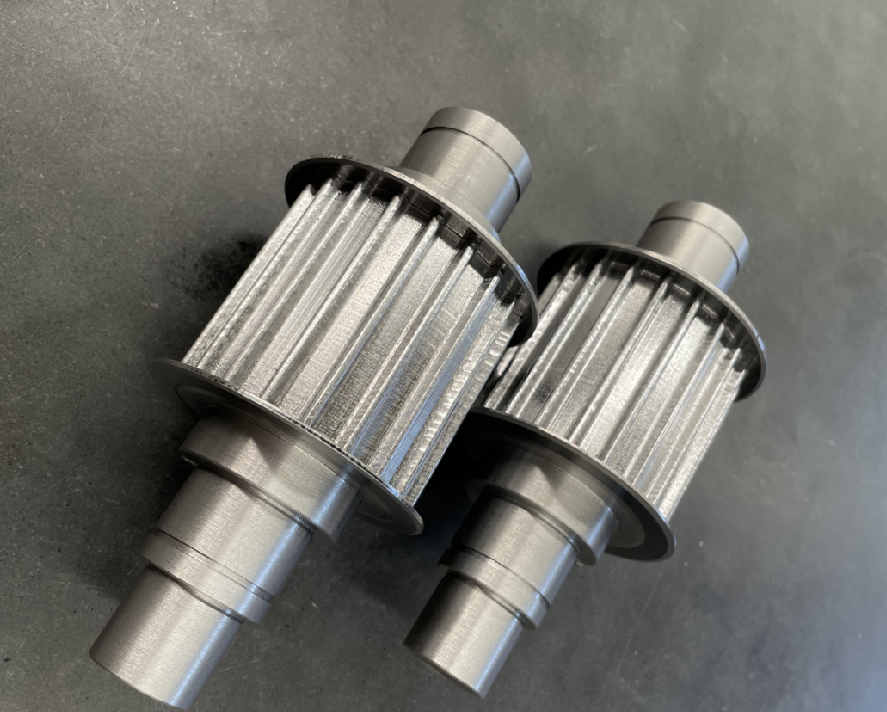

Industrial Robot Reducer Gears
Custom gears designed for industrial robots.
Features include high precision, low backlash, and high rigidity. Backlash is controlled within 1arc-min, with repeatability accuracy of ±0.01mm. Already deployed in robotic joint applications, it operates smoothly with a lifespan of up to 20000 hours.
Automated Printing Equipment
Combines slow-wire EDM and micro-milling for ±0.01mm dimensional accuracy and Ra0.4 surface roughness, eliminating paper wrinkling and enhancing printing continuity.
Treated with passivation for enhanced corrosion resistance and durability against inks and cleaning agents. Proven through industrial environment testing, this solution is now mass-deployed in high-speed digital printers and high-precision label printing equipment, supporting efficient production across the printing industry.
Need custom transmission components?
Custom design from images or samples. Our expert team creates tailored solutions for you.
Get a Quote
